SDI Video Inputs
1 x SD, HD or 6G-SDI. 1x ALT SDI Input for automatic
switch over if main input fails
CONVMCAUDS4K
Limitado ao Stock do Fabricante
Categorias:

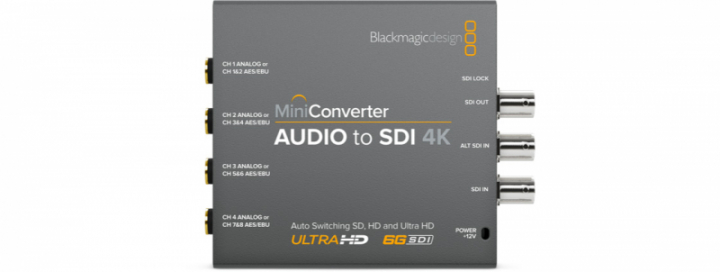

CONVERSORESMini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. Now you can embed professional audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters!
339,00 € S/ IVA
Connections
SDI Video Output
1 x Embedded SDI Output.
Analog Audio Outputs
4 channels of professional balanced analog audio
with standard 1/4 inch jack connections.
Digital Audio Outputs
8 channels of professional balanced digital audio
with standard 1/4 inch jack connections.
SDI Redundant Inputs
Automatically switches over if main input fails
Multi Rate Support
Auto detection of SD, HD or 6G-SDI.
Updates and Configurations
Via USB 2.0 high speed (480 Mb/s)
Reclocking
Yes
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98,
1080p24, 1080p25, 1080p29.97, 1080p30,
1080p47.95, 1080p48, 1080p50, 1080p59.94,
1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25
1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94,
1080i60
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI,
2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI,
2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI,
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI,
2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97,
2160p30
4K Video Standards
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
4K DCI 29.97p, 4K DCI 30p
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M,
SMPTE 372M,SMPTE ST-2081, ITU-R BT.656
and ITU-R BT.601
SDI Video Rates
SDI video inputs are automatically detected between
standard definition and high definition.
SDI Video Sampling
4:2:2, 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2, 4:4:4
SDI Color Space
YUV, RGB
SDI Auto Switching
Automatically detects SD, HD, 3G and 6G-SDI
Software
Software Control
Mac OS and Windows software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later
Windows 10, 64-bit.
Settings Control
Mini Switches or USB Software.
Power Requirements
Power Supply
+12V universal power supply included with
international socket adapters for all countries.
Cable tie point
Power Consumption
8.40W
Operational Voltage Range
12-31V DC
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
