SDI Video Inputs
1 x SD, HD or 1.5G-SDI. 1x ALT SDI Input for automatic
switch over if main input fails
CONVMASA
Limitado ao Stock do Fabricante
Categorias:

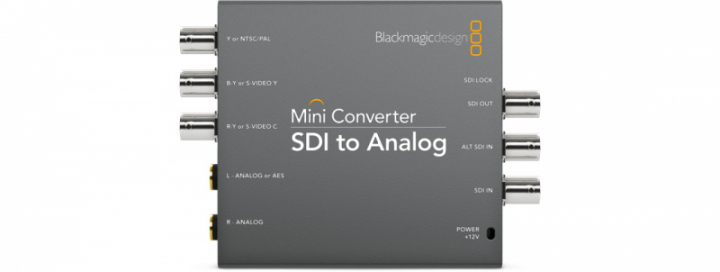

CONVERSORESThe perfect way to convert from SD and HD‑SDI to analog component, s‑video or NTSC/PAL composite. Mini Converter SDI to analog supports all SD and HD input formats up to 1080p30 and includes a down converter for when you need to convert from HD to standard definition analog formats such as s‑video and composite. Audio can be de‑embedded to balanced analog or AES/EBU. Mini Converter SDI to Analog is ideal for converting to older analog equipment when you don’t need the extra cost of the 6G‑SDI 4K model.
219,00 € S/ IVA
Connections
SDI Video Output
1 x SDI Video Loop Output.
SDI Redundant Inputs
Automatically switches over if main input fails
Analog Video Outputs
NTSC, PAL, S-Video and component SD/HD
from 1.5G-SDI input.
Analog Audio Outputs
2 channels of professional balanced analog audio
with standard 1/4 inch jack connections.
Digital Audio Outputs
2 channels of balanced digital audio.
Multi Rate Support
Auto detection of SD, HD or 1.5G-SDI.
Updates and Configurations
USB
Reclocking
Yes
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p47.95, 1080p48, 1080p50,
1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M,
SMPTE 372M, SMPTE 424M level B, SMPTE 425M
ITU-R BT.656 and ITU-R BT.601
SDI Video Rates
SDI video inputs are automatically detected between
standard definition, high definition and lvel B 3G-SDI.
SDI Video Sampling
4:2:2
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD or 3G-SDI
Analog Format Support
525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94,
720p60, 1080p23.98, 1080p24, 1080p25,
1080p29.97, 1080p30, 1080i50, 1080i59.94,
1080i60
Analog Color Space
YUV
Analog Color Precision
4:2:2
Format Conversion
HD to SD down conversion
Software
Software Control
Mac OS and Windows software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later
Windows 10, 64-bit.
Settings Control
Mini Switches or USB Software.
Power Requirements
Power Supply
+12V universal power supply included with
international socket adapters for all countries.
Cable tie point
Power Consumption
8.04W
Operational Voltage Range
12-31V DC
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
