SDI Video Inputs
1x SD, HD or 3G-SDI Video input
and 1 x External Reference Input.
Categorias:

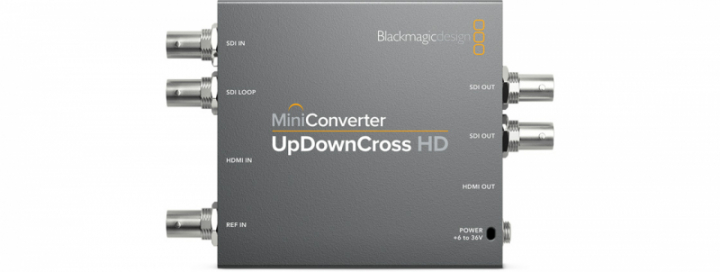

CONVERSORESMini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format! You get both SDI and HDMI inputs and outputs, along with reference input for built in re‑sync, high quality Teranex conversion algorithms, automatic audio delay for perfect AV sync, international power supply and more!
Insira o seu email para receber notificação quando a disponibilidade deste produto mudar.
*Se já é cliente registado, pode usar a Wishlist para receber esta e outras notificações sobre o produto.
Quantidade | Preço Unitário |
---|---|
155,00 € (S/ IVA)
|
1x SD, HD or 3G-SDI Video input
and 1 x External Reference Input.
1 x loop out and 2 x outputs
1 x type A.
1 x type A.
Output supports EDID of the monitor.
270Mb, 1.5G, 3G.
Black burst and Tri-Sync for SD and HD.
Auto detection of HD or standard definition SDI inputs.
USB
Yes
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97,
1080p30, 1080p47.95, 1080p48, 1080p50,
1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
720p50, 720p59.94, 720p60, 1080p23.98,
1080p24, 1080p25, 1080p29.97, 1080p30,
1080p50, 1080p59.94, 1080p60, 1080i50,
1080i59.94, 1080i60
SMPTE 259M, SMPTE 292M, SMPTE 296M,
SMPTE 372M,SMPTE 424M level B, SMPTE 425M
level B, ITU-R BT.656 and ITU‑R BT.601
SDI video inputs are automatically detected between
standard definition, high definition and level B 3G-SDI.
Timecode and closed captioning
4:2:2
Television standard sample rate of 48 kHz and 24 bit.
4:2:2
YUV
Automatically detects SD, HD and 3G-SDI
Convert any SD and HD input to "720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25,
1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60"
Scale DVI resolutions 640x480, 800x600, 1024x768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50,
1080i59.94, 1080i60
Via included updater application.
Mini Switches
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later
Windows 10, 64-bit.
+12V universal power supply included with
international socket adapters for all countries.
5W
6 to 36 Vdc
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
